Product number:
4585.M4ASF2NV
Badeco M4 ASF2 Light Nano Kit with micromotor RS3000V
Produktdetails

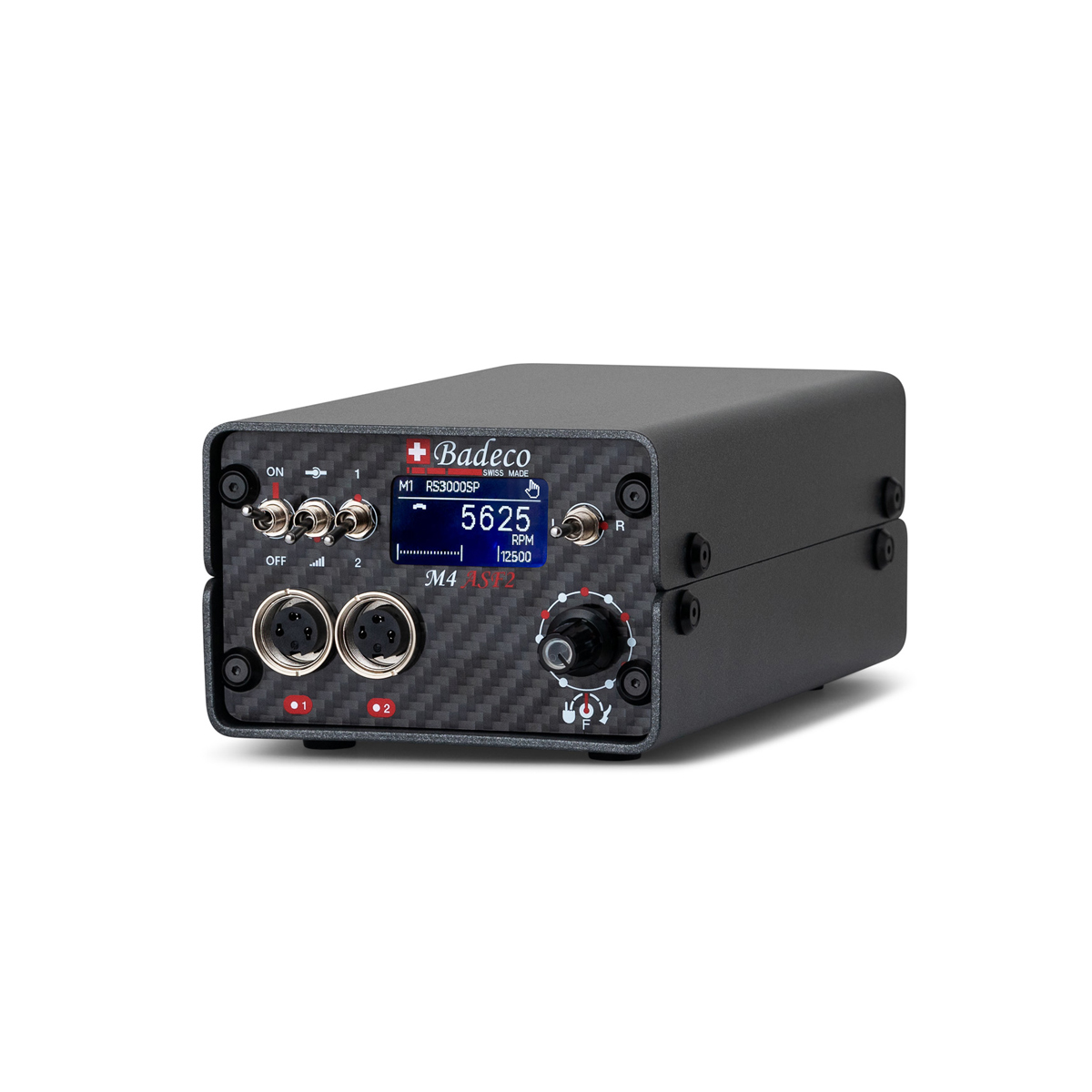

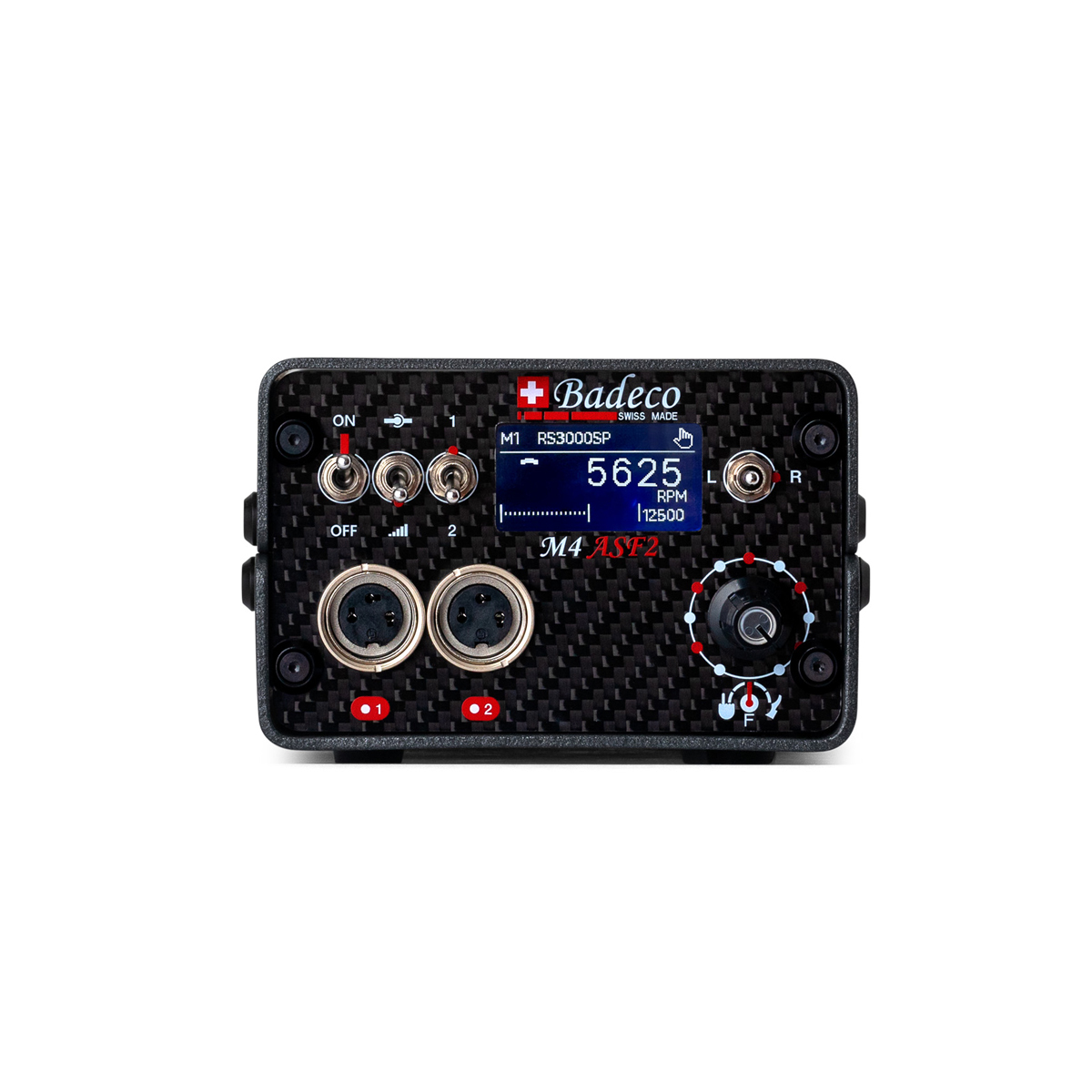

The M4 ASF 2 control unit was specially developed for the demanding needs of jewellers, watchmakers and artists, yet is easy to operate.
It has 2 connections that are selected manually via the knob.
The Badeco RS3000V carbon fibre micromotor/ nanomotor (Ref.no. 4585.RS3000V), on the other hand, is the choice for high speeds up to 30,000 rpm. This motor is also ultra-short and ultra-light (only 55 g). The speed range here is between 1,500 and 30,000 rpm.
The quick-action handpiece # 460 allows a quick change with ¼ turn without having to stop the motor. The handpiece offers double protection against dust, dirt and abrasive substances and guarantees high concentricity.
Kit consisting of:
It has 2 connections that are selected manually via the knob.
The Badeco RS3000V carbon fibre micromotor/ nanomotor (Ref.no. 4585.RS3000V), on the other hand, is the choice for high speeds up to 30,000 rpm. This motor is also ultra-short and ultra-light (only 55 g). The speed range here is between 1,500 and 30,000 rpm.
The quick-action handpiece # 460 allows a quick change with ¼ turn without having to stop the motor. The handpiece offers double protection against dust, dirt and abrasive substances and guarantees high concentricity.
Kit consisting of:
- Badeco M4 ASF 2 control unit
- Badeco RS3000V nanomotor
- Badeco Quick-Exchange handpiece #460 incl. collet Ø 2.35 mm
- Foot pedal PC800 (vario)
- Handpiece holder
- Mains plug
Optional this nanomotor can be used with the following handpieces:
Badeco rivetting and setting mallet No. 518 C, 518 SP and 518 USP
Badeco rivetting and setting mallet No. 528 C, 528 SP and 528 USP
Badeco filehandpiece No. 5LC050, 5LC100 and 5LC150
Badeco handpiece 90° angled
| Branch: | Watches & Jewellery |
|---|---|
| Brand: | Badeco |
| Diameter collet (mm): | 2.35 |
| Dimension 1 - Length (mm): | 180 |
| Dimension 2 - Width (mm): | 110 |
| Dimension 3 - Height (mm): | 70 |
| Footswitch operation: | Vario |
| Frequency (Hz): | 50/60 |
| Number of connections: | 2 ports |
| Power (W): | 55 |
| Rotational speed (rpm): | 1.500 - 30.000 |
| Rotation direction: | clockwise, counterclockwise |
| Speed control: | stepless |
| Voltage (V): | 230 |
| Weight (kg): | 2,5 |
| Weight motor/ handpiece (g): | 55 |
