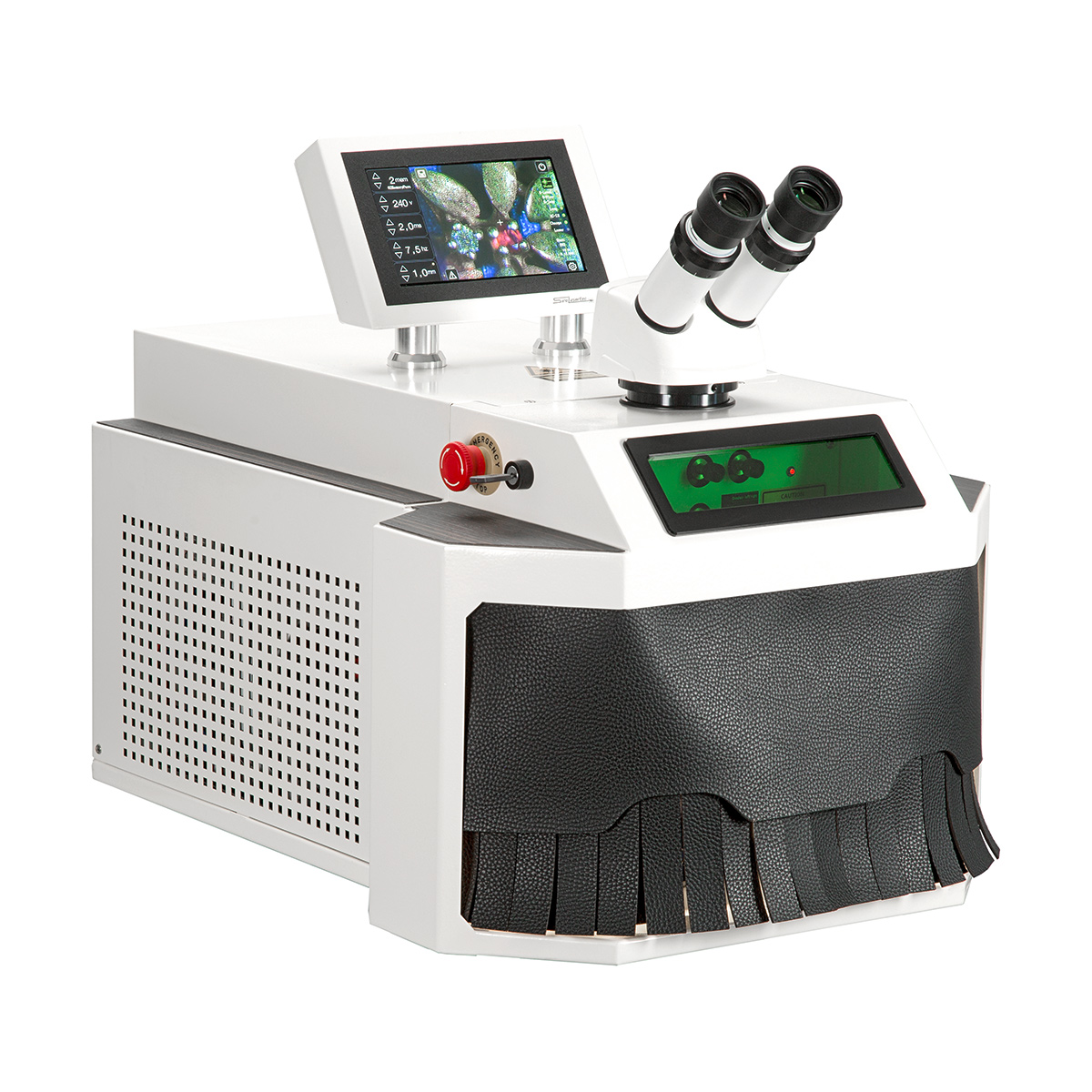

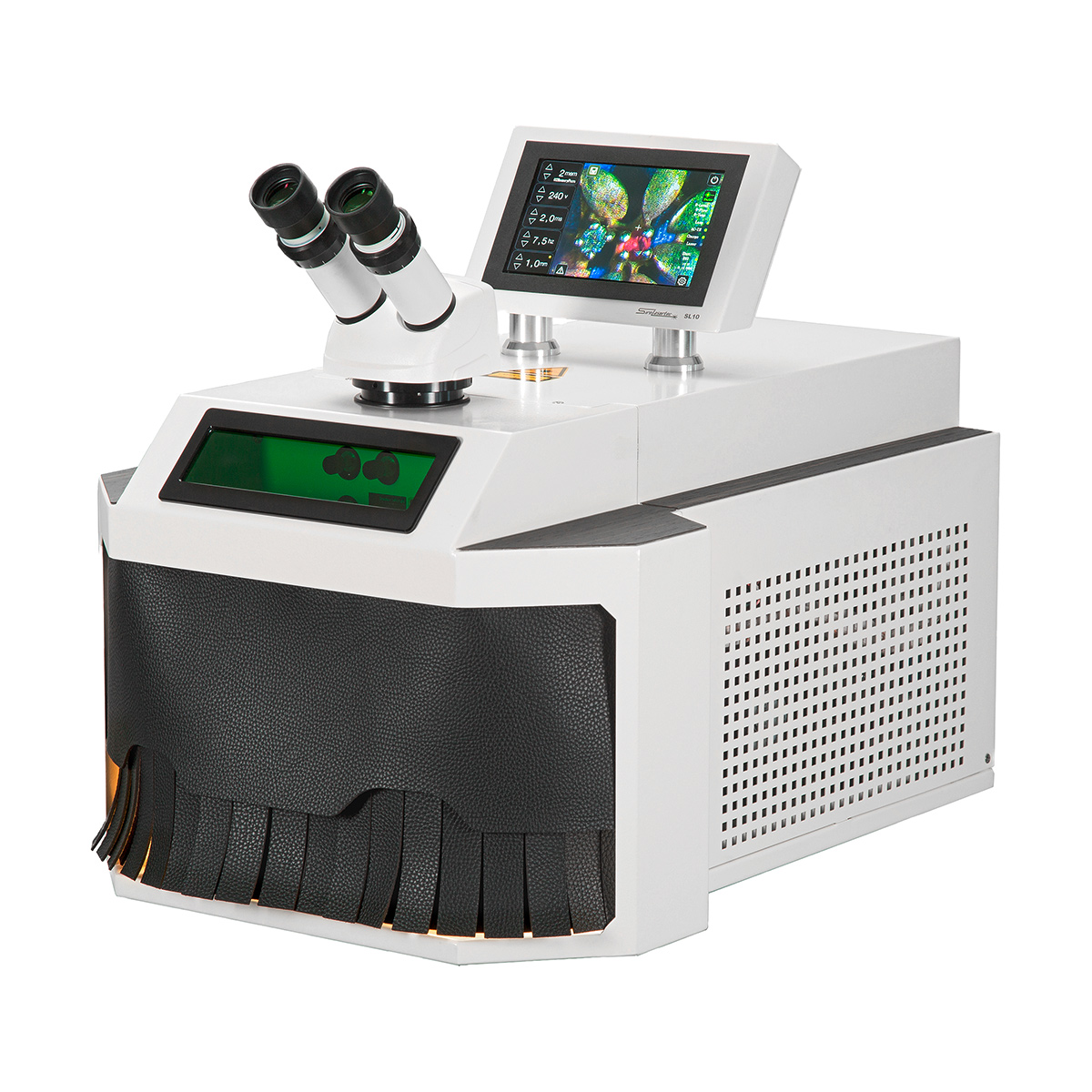

SiroLasertec SL10 – Compact tabletop welding laser for precision work

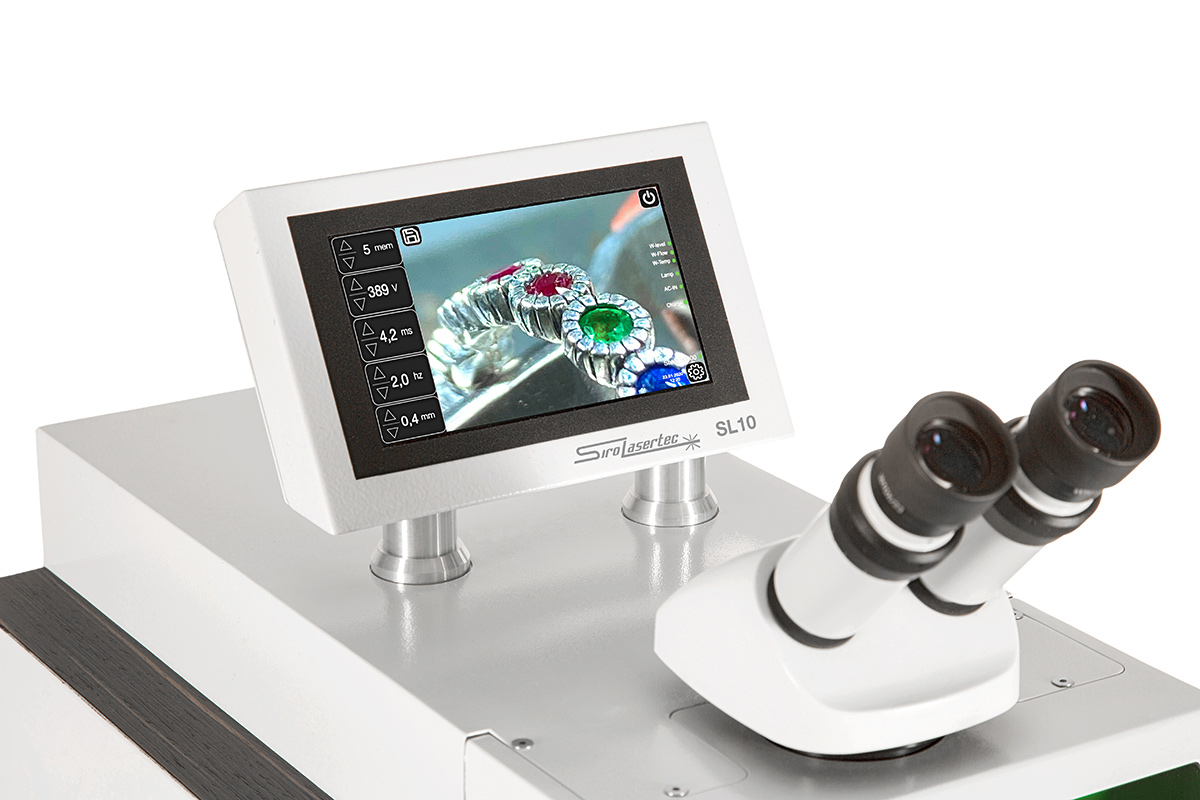

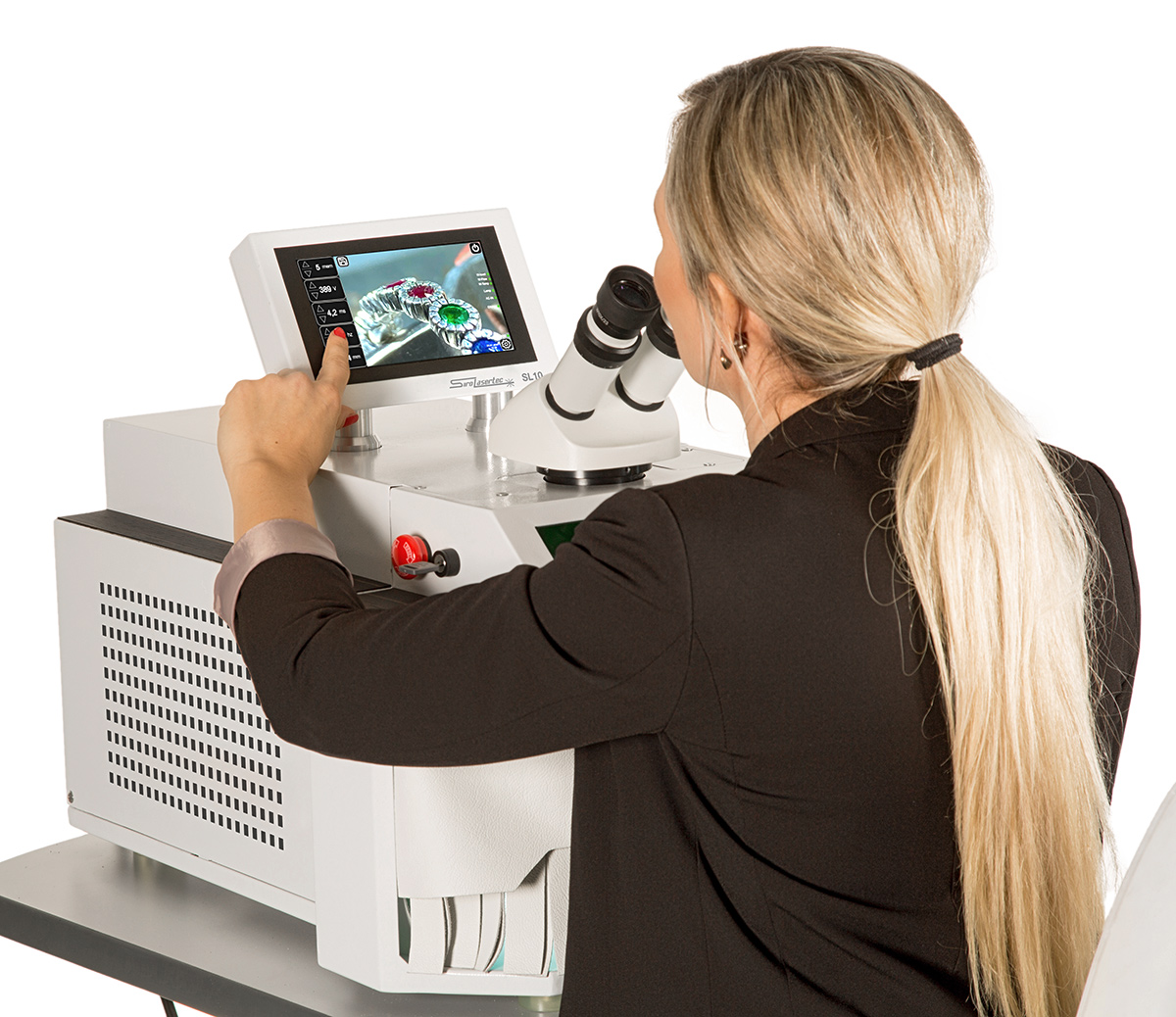

Thanks to the large opening to the working chamber, the SL10 provides convenient, barrier-free access to your workpieces. The integrated camera transmits the welding process directly to the intuitive touch display, allowing you to set parameters precisely and call up welding programmes quickly.

Thanks to its 5-litre water cooling system, the welding laser is also designed for continuous operation and is particularly suitable for workshops with limited space. The solid metal housing and sophisticated technology guarantee durability and high process reliability – ideal for craft and precision engineering applications.

Product highlights:

• Compact tabletop welding laser – ideal for small and medium-sized workshops

• Integrated camera for process monitoring

• Large, user-friendly touch display for control and programme selection

• Barrier-free access to the working chamber via large front opening

• Efficient 5-litre water cooling – also suitable for continuous operation

• Robust metal housing for long service life

• Firing rate up to 20 rounds per second


Technical data:

• Peak pulse power: 3.5 kW

• Max. average power: 60 W

• Pulse frequency: 1 – 20 Hz

• Pulse duration: 0.5 - 10 ms

• Spot diameter: 0.2 – 2.0 mm

• Dimensions (LxWxH): ~ 600 × 440 × 480 mm (L×B×H)

• Weight: 37 kg
