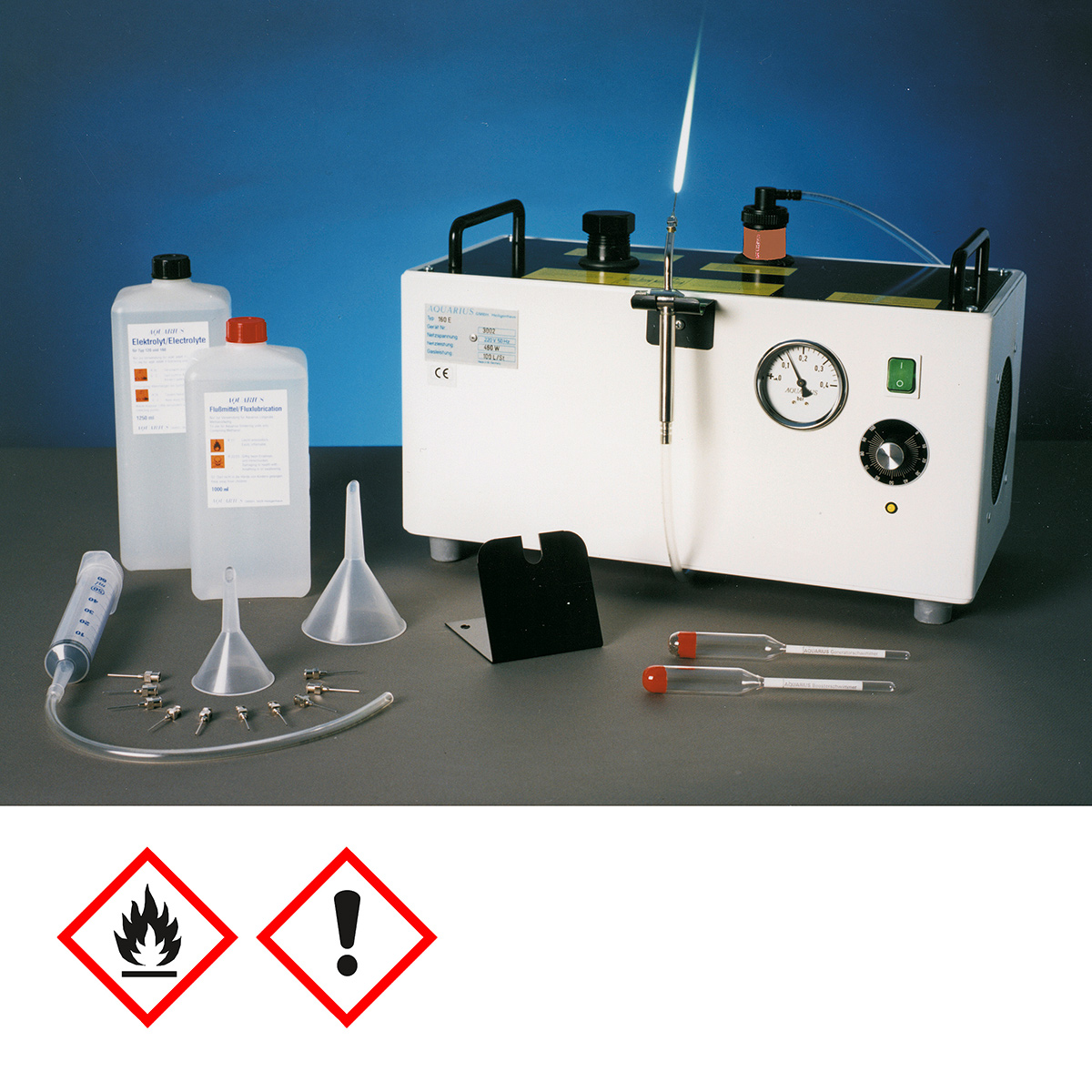

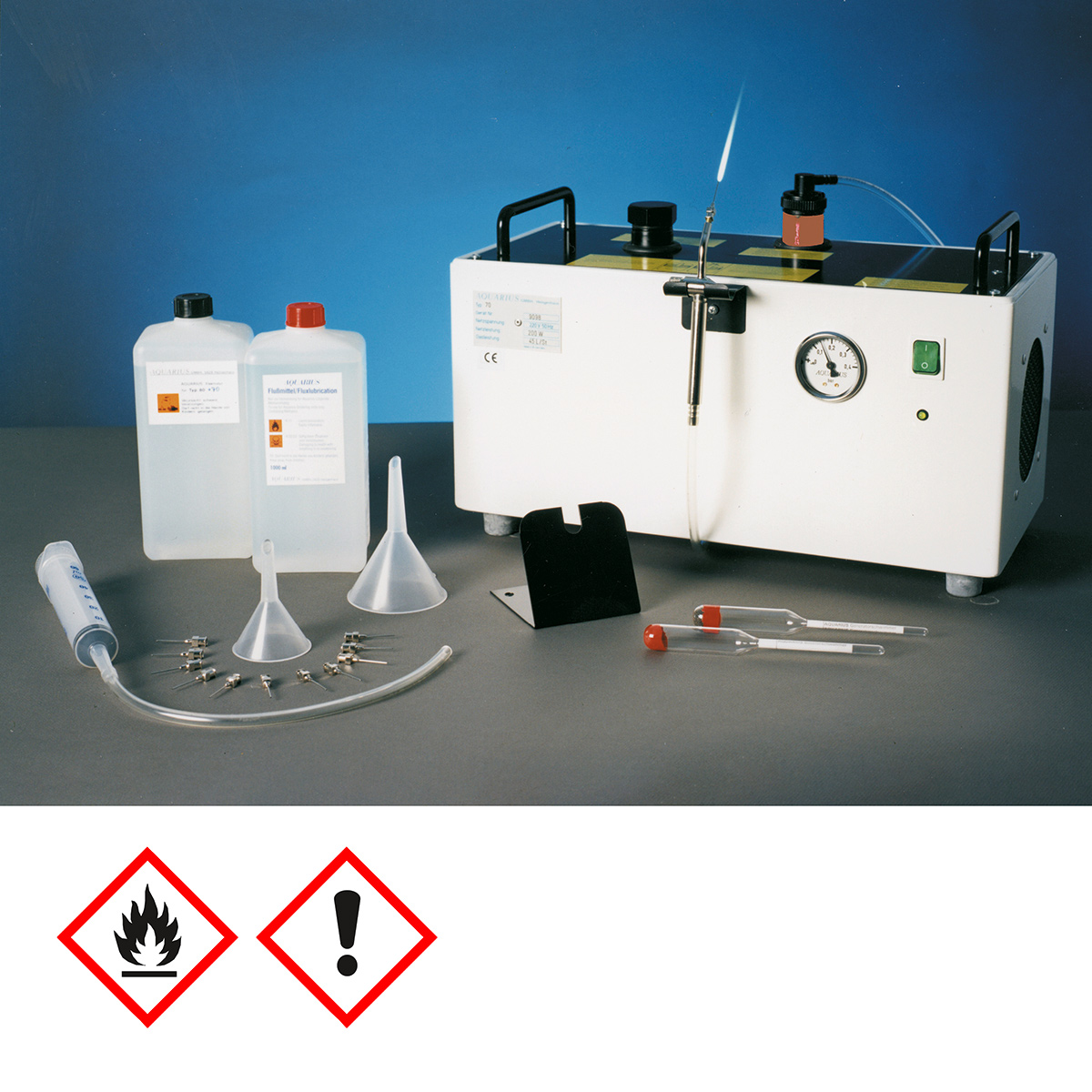

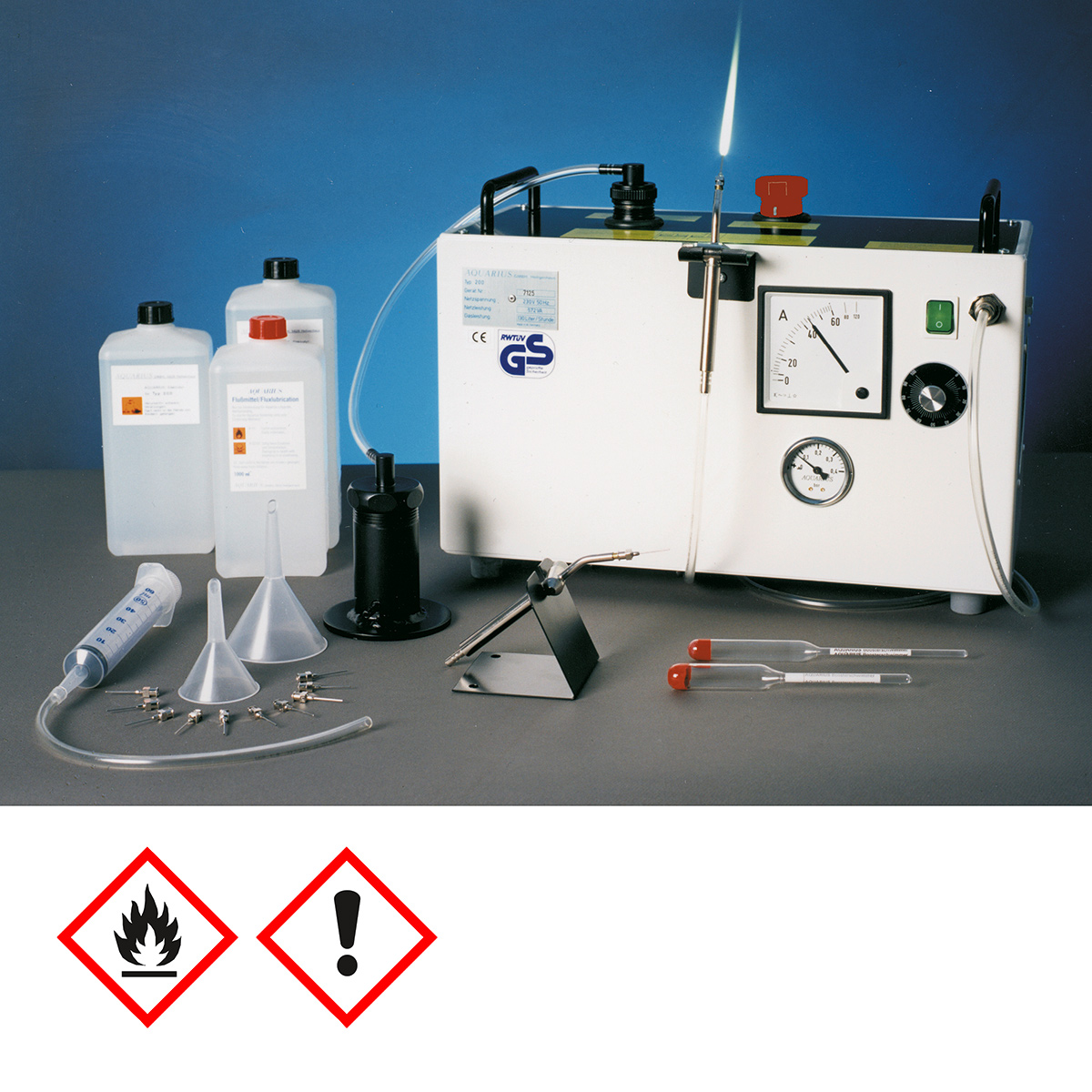

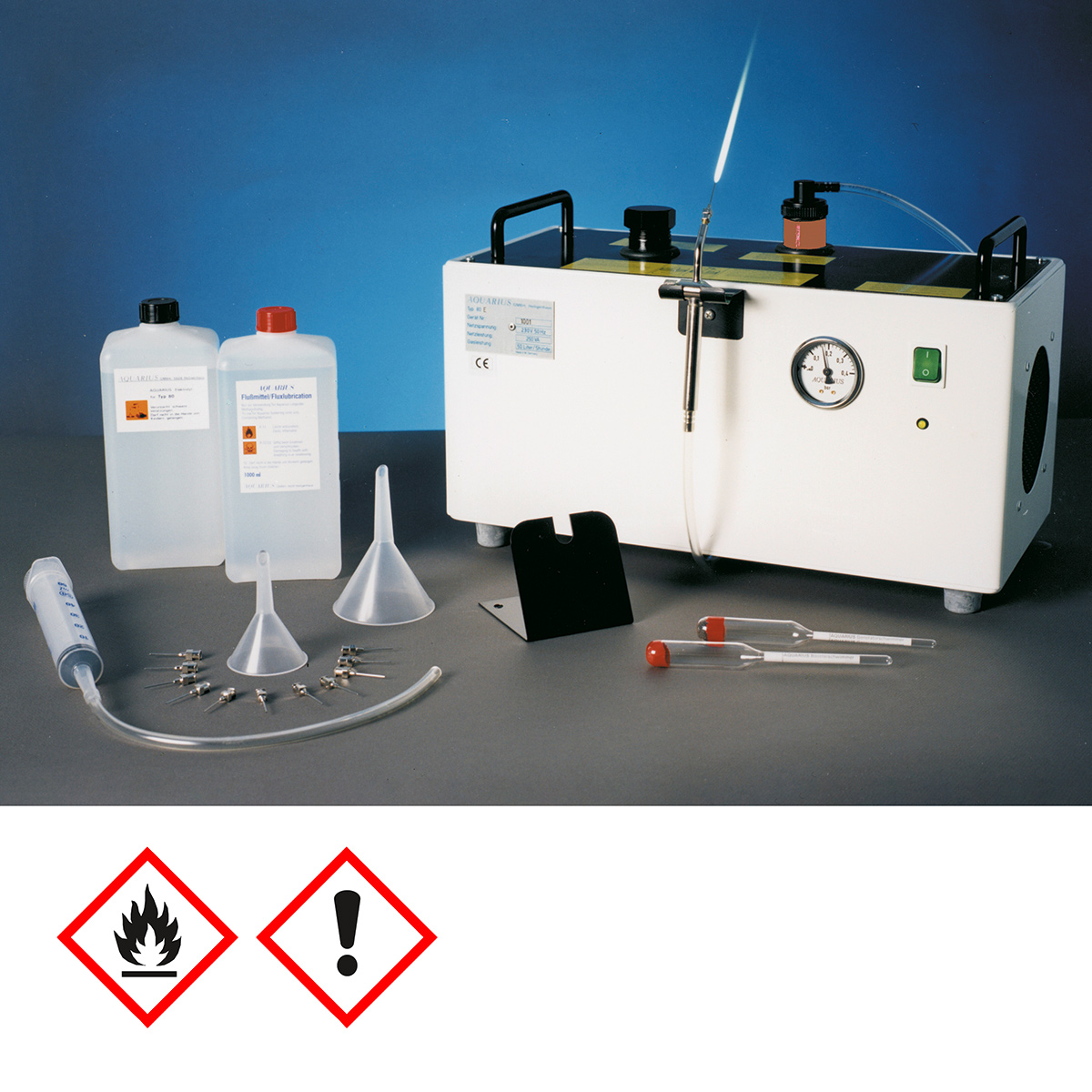

Compact, efficient soldering machine with intregrated gasmixer for goldsmiths, jewellers, watchmakers, opticians and precision mechanics.

Electrolysis of distilled water produces a flammable detonating gas
No storage of larger gas quantities in your repair shop and no intricate controlling of pressure and mixture ratio.
Concentration of hot flame (till over 3000°C, if without flux) enables quick soldering without unnecessary warming of the whole work piece.
Flame value and flame temperature stay constant

Features:
1 Burner handpiece with fine adjust outlet
1 Dispatch connection
1 Burner stand
1 Burner hanging angle
4 Burner nozzles assorted
2 Fill level float lever
2 Funnel
1 Cleaning nozzle
1 Filling Electrolyte
1 Litre Flux

Gas power: 80 l/h
Usable nozzle Dimension: No. 18
Number of workplaces: 1 (starting with nozzle dimension
20 two)
Water consumption: 44 g/h
Flux consumption: 13 g/h
limit value control: safety pressure delimiter
temperature control: thermostat switch
number of flame backstroke barricade: 2 (inside the burner handpiece and the dispatch connection)
pressure display: pressure gauge
generator filling quantity: 1,35 l electroyte
gas mixture filling quantity: 0,1 l flux


Voltage: 230 V
Dimension (LxDxH): 450 x 280 x 220 mm
Weight (kg): 18

Notice according to REACH Regulation (EC) No. 1907/2006:

Hazard statements (H-statements)

• H225 Highly flammable liquid and vapour.

• H319 Causes serious eye irritation.

Precautionary statements (P-statements)

• P101 If medical advice is needed, have product container or label at hand.

• P102 Keep out of reach of children.

• P103 Read carefully and follow all instructions.

• P210 Keep away from heat, hot surfaces, sparks, open flames and other ignition sources. No smoking.

• P233 Keep container tightly closed.

• P241 Use explosion-proof [electrical/ventilating/lighting] equipment.

• P264 Wash thoroughly after handling.

• P280 Wear protective gloves/protective clothing/eye protection/face protection/hearing protection.

• P303+P361+P353 IF ON SKIN (or hair): Take off immediately all contaminated clothing. Rinse skin with water or shower.

• P305+P351+P338 IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses if present and easy to do. Continue rinsing.

• P337+P313 If eye irritation persists: Get medical advice/attention.

• P370+P378 In case of fire: Use CO₂, dry chemical or water spray to extinguish.

• P501 Dispose of contents/container in accordance with local/regional/national/international regulations.
