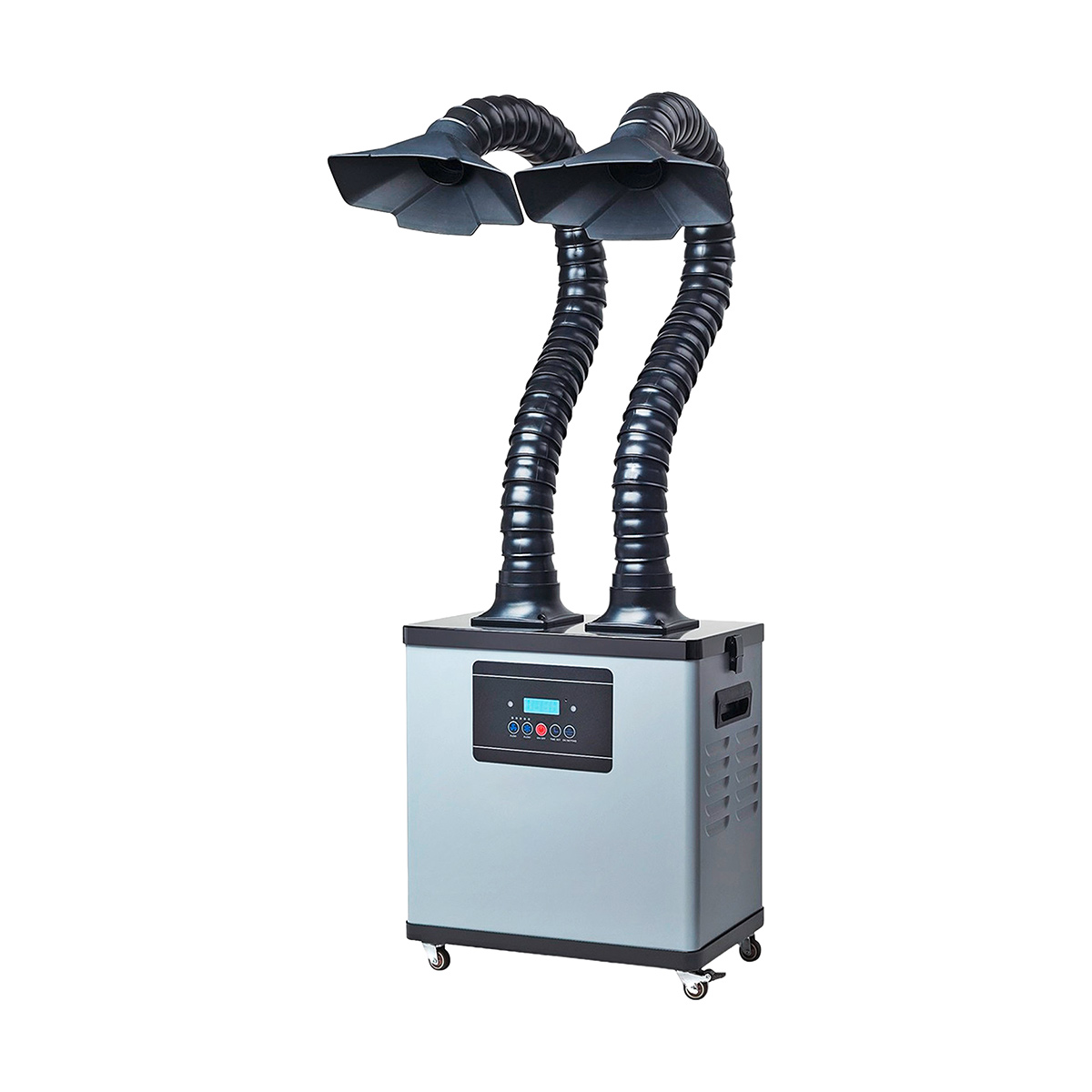

The Augusta^® workstation extraction system with two flexible extraction arms is suitable for the effective capture of soldering fumes, as well as gases, vapours, odours and fine particles produced during processes such as soldering, electroplating and laser engraving, amongst others.

Thanks to the two independently positionable extraction arms, two workstations can be extracted simultaneously, or larger work areas can be covered flexibly.

If required, the unit can be quickly converted from a two-arm to a single-arm configuration using the hose connection cover supplied. The three-stage filter system, comprising a HEPA filter and an activated carbon filter, removes up to 99.97% of particles measuring 0.3 µm and also reduces gases and odours. The purified air is discharged from the side of the unit.

The extraction unit is fitted with a remote control for ease of use. Castors make it easy to move around the workplace. With a noise level of less than 52 dB, the device operates relatively quietly and is therefore also suitable for continuous use in the workplace. Thanks to its compact dimensions, the unit can easily be placed under or behind a workbench, making it suitable even for workstations with limited space.

Technical data:

• Air intake: 2 x Ø 65 mm

• Flexible extraction arms: 2 pieces, each 1.4 m long

• Hose connection cover for use with an extraction arm

• Air velocity: 2 × 11 m/s

• Filter system: 3-stage with HEPA filter and activated carbon filter

• Filter efficiency: 99.97% for particles of 0.3 µm in size
